Route Optimization Software Development: A 2026 Guide

YuSMP Group Editorial Team Editorial team, YuSMP Group

TL;DR — key facts at a glance

Route optimization is one of the highest-leverage sub-systems in logistics: small efficiency gains compound into real fuel, labor and capacity savings. It is also genuinely technical — which is why most operators scope it as a dedicated custom software development engagement rather than a bolt-on feature. The essentials:

• Not a directions API: true optimization solves the multi-vehicle, many-stop, many-constraint problem — which vehicle takes which stops, in what order.
• At its core is the Vehicle Routing Problem (VRP) — NP-hard, so real systems use solvers and heuristics, not exact optimization.
• Build on a solver: Google OR-Tools (open-source) plus a distance-matrix provider is the pragmatic foundation for most custom builds.
• Cost: a focused tool runs $120,000–$250,000; a production system with real-time re-routing and telematics runs $250,000–$500,000+.
• Real-time re-routing — adjusting plans as orders, traffic and failures occur — is where the hard engineering lives.
• Clean geocoded data is the most common practical bottleneck.

What does route optimization software do?

A consumer directions app answers "what's the fastest way from A to B?". Route optimization answers a harder question: "given 300 stops, 12 vehicles, time windows, capacities and driver shifts, which vehicle should take which stops, in what order, to minimize total cost?" That is a different class of problem. It's combinatorial, tightly constrained, and sensitive to the smallest change in inputs.

Done well, it cuts miles driven, packs more stops into each shift, and lifts on-time performance. We built exactly this kind of system for a last-mile operator; see the xRouten logistics app case study.

The vehicle routing problem and its constraints

The Vehicle Routing Problem (VRP) is the mathematical heart of route optimization: assign stops to vehicles and sequence them to minimize a cost subject to constraints. The constraints are what make real operations hard:

• Time windows — deliver between 9 and 11, or within a promised slot.
• Capacity — volume and weight limits per vehicle.
• Driver shifts — legal hours, breaks, start/end locations.
• Skills and access — refrigerated vehicles for cold-chain, vehicles allowed in low-emission zones.
• Pickup-and-delivery pairing — collect here, drop there, in the right order.
• Multiple depots — stops served from several origins.

VRP is NP-hard: the number of possible solutions explodes with stop count, so exact optimization is only feasible for small instances. Real systems use heuristics and metaheuristics to find very good (not provably optimal) solutions within a time budget.

Why route optimization pays off

The case for route optimization isn't abstract — it shows up directly in fuel, labor and capacity numbers. Operators that switch from manual or naive planning to a proper solver typically see gains across several fronts at once:

• Fewer miles driven per stop — a solver-generated sequence consistently beats manual planning or experience-based routing, especially past a few dozen stops.
• Lower fuel and vehicle-wear cost — fewer miles and less idling translate directly into operating cost, which compounds across a fleet running every day.
• Higher on-time performance — time-window-aware sequencing reduces missed slots and the rework (redelivery, customer complaints) that follows.
• More stops per shift — tighter routes mean the same fleet and driver hours cover more volume without adding vehicles.
• Better customer experience — accurate ETAs and fewer missed windows are visible to the end customer, not just to ops.
• Lower emissions per delivery — fewer miles is also a sustainability metric, increasingly tracked by enterprise shippers and their customers.

These aren't marginal numbers at scale. UPS's ORION routing system, one of the most cited public examples of solver-based optimization in logistics, has been reported to save on the order of 100 million miles and several hundred million dollars a year across the fleet it covers — a useful reference point for why even a low single-digit percentage improvement is worth engineering effort once you're running dozens of vehicles daily.

Key features to include

A production route optimization system is more than a solver call. The feature set that shows up in almost every real deployment:

• Solver / routing engine — the VRP core (OR-Tools, VROOM or a commercial solver) that assigns and sequences stops.

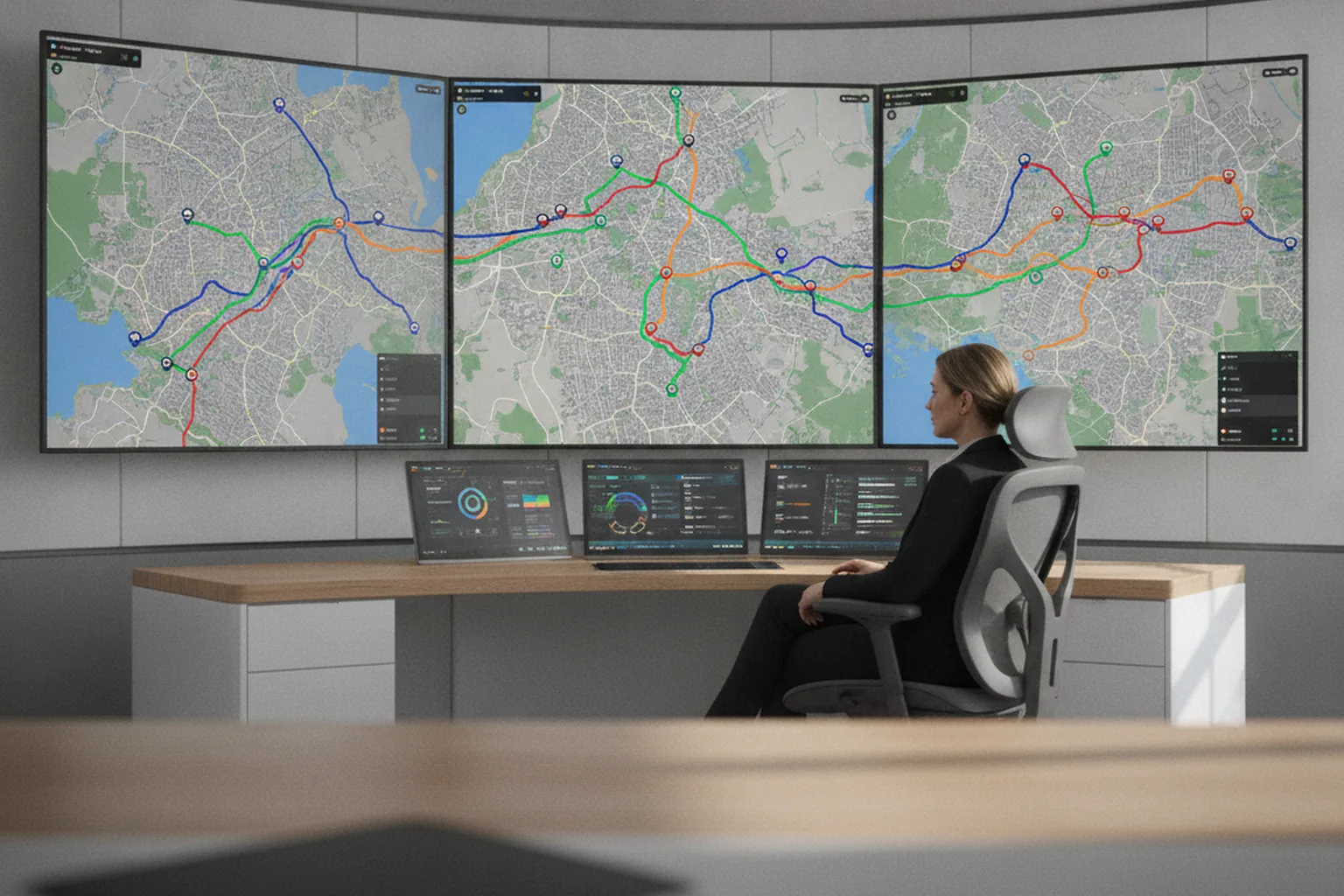

• Planning UI / dispatcher console — where planners review solver output, override sequences and approve routes before they go out.
• Driver mobile app — turn-by-turn navigation for the assigned sequence, plus proof of delivery (ePOD): photo, signature or barcode scan.
• GPS / telematics tracking — live vehicle positions feeding both the dispatcher view and real-time re-routing.
• Automated dispatch — routes and updates pushed to drivers without a planner manually reassigning each stop.
• Customer notifications — live ETA and delivery-window updates surfaced to the end customer, usually via SMS or email.
• Reporting and analytics — on-time rate, miles per stop, utilization and exceptions, tracked over time to prove the ROI.
• Multi-depot and multi-vehicle-type support — needed as soon as you run more than one origin or a mixed fleet (vans, refrigerated trucks, low-emission-zone-restricted vehicles).

Not every build needs all of these on day one. A focused first version can ship with the solver, a basic planning UI and a simple driver app, then add telematics, automated dispatch and analytics as the operation scales — see the cost and timeline breakdown below.

Build vs buy vs solver libraries

Three paths, and most production systems land on the third.

Buy an off-the-shelf route planner when your routing is standard. It's fast to deploy and maintained. Good for many delivery and field-service operations.

Build from scratch, meaning you write your own optimization algorithms, is rarely justified. The open-source solvers are very good, and they already represent years of specialized work you'd only be repeating.

Build on a solver library is the pragmatic middle path, and where most production systems end up. Wrap an engine like Google OR-Tools (open-source, with strong VRP support) or VROOM in your own constraint model, data pipeline, integrations and UI. You get state-of-the-art optimization without reinventing it, and you keep full control over your constraints and how they connect to the rest of the stack. This is what most custom route optimization should be. It is core custom software development work.

How route optimization software gets built, step by step

The path from a discovery call to a live system follows a consistent sequence, whether the first version ships in three months or ten:

1. Map constraints and define objectives — document time windows, capacity, driver shifts, skills and multi-depot needs, and decide what cost you're actually minimizing.
2. Choose a solver foundation — OR-Tools, VROOM or a commercial solver, selected against your problem size and constraint mix, not built from scratch.
3. Design the data pipeline — geocoding, address validation and a distance-matrix provider, so the solver works from real travel times.
4. Build the planning UI and dispatcher console — where planners review, adjust and approve solver output.
5. Build the driver app — sequenced stops, navigation, and proof-of-delivery capture.
6. Integrate orders, telematics and mapping — connect the solver to the rest of the stack, with correct error handling and idempotency.
7. Test at scale and tune the solver — validate against real stop volumes and tune the time budget so plans generate fast enough for daily operations.
8. Launch static, then add real-time re-routing — ship the daily-planning version first, then layer in the event-driven layer once it's stable.

The longest poles are usually steps 1 and 3: getting your real-world constraints right, and getting your address and distance data clean enough for the solver to trust. Everything downstream depends on those two being solid.

Real-time re-routing and ETA

Static optimization plans the day before it starts. Real-time systems adjust as reality intervenes: new orders land, stops fail, traffic shifts, a van breaks down.

Re-routing continuously ingests events (orders, GPS, traffic), re-optimizes only the affected subset of routes rather than the whole plan, and pushes updates to drivers. The hard part is doing this quickly and stably, so drivers aren't whipsawed by constant changes. Here an event-driven backbone and careful change-damping matter as much as the solver itself. This real-time tier is squarely cloud and DevOps territory.

ETA prediction combines the mapping provider's traffic-aware times with your own history: real service times per stop, and the patterns you see by time of day. Machine-learning models trained on your delivery data typically beat raw map-API ETAs. That is where our AI, ML & Data capability adds measurable accuracy.

Cost and timeline

Indicative ranges for an integration-complete agency build.

Cost is driven by constraint modeling, integrations and the real-time tier, not by the map on the screen. For the broader logistics build-cost picture, see our logistics software development guide.

Integrations and data

Route optimization is only as good as its inputs and connections:

• Orders / TMS — where stops and their attributes come from.
• Mapping / distance-matrix — HERE, Google Maps, Mapbox or OSM-based, for real travel times.
• Telematics / GPS — live positions for real-time re-routing and ETA.
• Driver app — receives routes, reports progress and proof of delivery.

Clean, well-geocoded addresses are the most common practical bottleneck: bad address data produces bad routes no matter how good the solver is. Budget for address validation and geocoding quality.

How to scope it with a partner

• Map your real constraints first — they define the solver model and most of the cost.
• Choose a solver foundation (OR-Tools or commercial) rather than building one.
• Decide your real-time requirements honestly — static vs live re-routing changes the architecture.
• Treat geocoding/data quality as a first-class workstream.
• Pick a partner with routing, geospatial and real-time experience, not just general app skills.

If you're building the surrounding TMS or last-mile app too, see our last-mile delivery app development guide and the logistics industry page.

FAQ

Should I build route optimization or buy an off-the-shelf product?

Buy when your routing is standard. Build custom when routing is a competitive advantage: unusual constraints, deep integration with your systems, or a scale where even small efficiency gains are worth real money. Plenty of operators run a hybrid, wrapping a solver engine in their own custom logic and integrations.

What is the vehicle routing problem (VRP)?

The Vehicle Routing Problem is the mathematical problem at the heart of route optimization: assign stops to a fleet of vehicles and sequence them to minimize cost, subject to constraints like time windows, capacity, driver shifts and pickup-and-delivery pairing. VRP is NP-hard, so real systems use heuristics and solvers rather than exact optimization beyond small instances.

Can't Google Maps do route optimization?

Not really. A directions API routes between ordered points and may optimize waypoint order for a single vehicle with few stops. True optimization solves the multi-vehicle, many-stop, many-constraint problem. You combine a mapping provider (travel times) with a VRP solver (assignment and sequencing).

What is OR-Tools?

Google OR-Tools is a widely used open-source optimization library with a strong routing module for VRP variants. It's a common, capable foundation for custom route optimization; alternatives include VROOM and commercial solvers.

How much does it cost to build?

A focused planner on an existing solver runs $120,000–$250,000; a production system with multi-depot, real-time re-routing, telematics and ETA prediction runs $250,000–$500,000+. The cost is in constraint modeling, integrations and the real-time layer.

How does real-time re-routing work?

It ingests live events (orders, GPS, traffic), re-optimizes the affected subset of routes, and pushes updates to drivers. The trick is doing that quickly and stably, so drivers aren't re-routed erratically. Under the hood it needs an event-driven backbone and careful change-damping.

How accurate are ETA predictions?

ETA accuracy depends on the inputs. A good ETA combines the mapping provider's traffic-aware travel times with your own historical data — real service times per stop and patterns by time of day. ML models trained on your delivery history typically beat raw map-API ETAs because they capture your operation's real service times, and accuracy improves as you accumulate more data.

What data does route optimization software need?

Core inputs: stops geocoded to coordinates, order attributes (size/weight, time windows, service time, required skills), the fleet (vehicles, capacities, depots, shift limits), and a distance/time matrix from a mapping provider. For real-time operation, add live GPS positions and traffic data. Clean, well-geocoded address data is the most common practical bottleneck.

Does it support multiple depots and vehicle types?

Yes — these are standard VRP extensions. Multi-depot routing assigns stops across several origins; heterogeneous fleets model different vehicle capacities, costs and access (a van barred from a low-emission zone, a refrigerated truck for cold-chain). A capable solver like OR-Tools handles these as additional constraints.

How long does it take to build?

A focused build on an existing solver typically takes 3–5 months to a usable first version. A production system with real-time re-routing, telematics integration and a dispatcher console runs 5–8 months. The longest poles are constraint modeling, integrations and tuning the solver for your problem size.

What does route optimization integrate with?

Typically your order or TMS system, a mapping/distance-matrix provider (HERE, Google Maps, Mapbox or OSM-based), GPS/telematics for live positions, and the driver mobile app. It often feeds ETAs back into customer notifications. See our logistics software development guide for the broader integration picture.

At what fleet size does custom route optimization pay off?

There's no hard threshold, but value scales with route count and complexity. Below a handful of vehicles with simple routes, a planner's intuition or an off-the-shelf tool is usually enough. Past tens of vehicles, or with tight time windows and many constraints, even a few percent efficiency gain translates into meaningful fuel, labor and capacity savings.

Last updated 27 September 2026. Cost and timeline ranges reflect integration-complete agency builds for US and EU operators and vary by constraints, fleet size, integrations and real-time requirements. Request a scoped proposal for your specific operation.
